1.定型室加热方式：1. 导热油 2. 天然气 3. 蒸汽

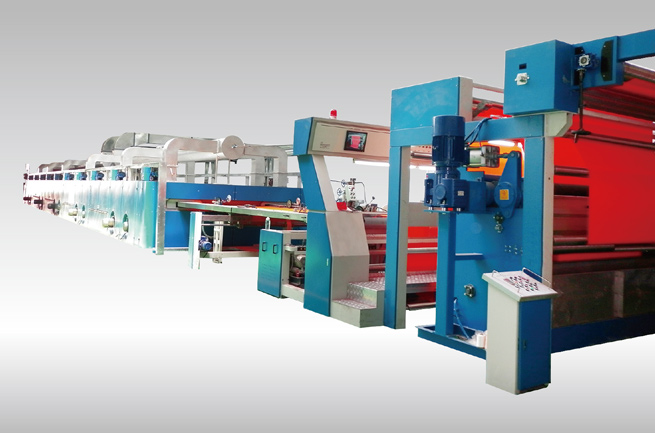

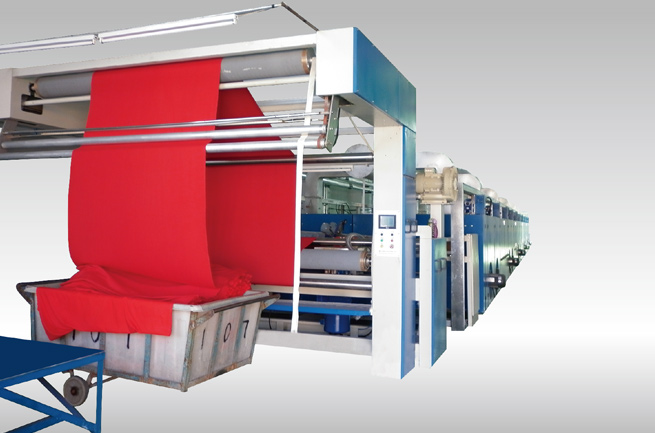

2.拉幅定型机用以对布料的拉幅整理，主要适用于棉质布料，化纤及混合布料等开幅织物。该机会将布料恢复并定型至原有设定长度及宽度。拉幅过程中亦可添加相关助剂。
3.根据布幅不同，我们可按工作宽度提供以下热销机型：DGLD2400/DGLD2600/DGLD2800.
4.我公司拉幅定型机配备水平对辊轧车，单轧车，机械整纬仪，燃烧器（选配）,浆切边装置（选配）等。
|
Stentering type |
Hot air circulating |
|
Chain type |
Pin+Clip |
|
Rail type |
Pitch 60mm;Oil-free lubricated |
|
Holding type |
Carbon Steel+Polymer wearing strip |
|
Working type |
Horizontal return chain |
|
Working width |
1000~3600mm |
|
Working speed |
5-60m/min |
|
Chamber width |
3000mm |
|
Insulating board thickness |
150mm |
|
Pinning & brush overfeed ratio |
-20%~40% |
|
Temp.& Breadth adjustment type |
Adjustment on each chamber |
|
Standard machine power supply |
380V/3PH/50HZ |
|
Control power supply |
220V/24V |
|
Steam specification of steam box |
3-6kg/cm² |
|
Steam consumption of steam box |
100-150kg/h |
|
Equipment & Brand |
Single Padder/Schneider component/ Siemens motor, PLC, Touch Screen, Inverter/ EL Cutter/ Hankfeuer Burner |
